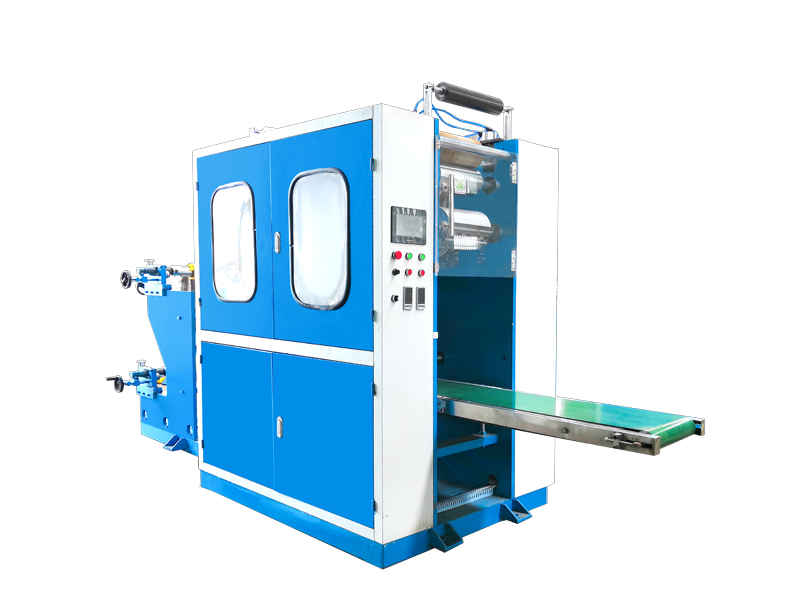

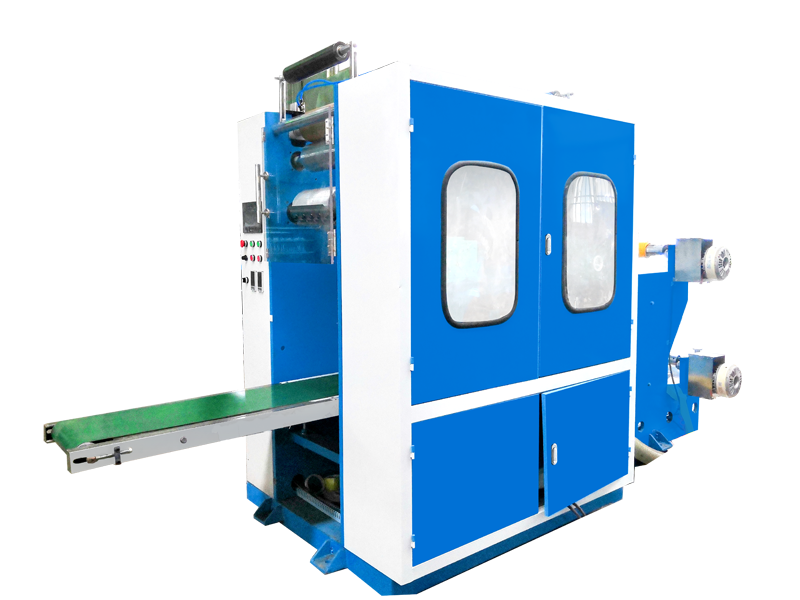

產品概述

　　設備工藝流程

　　原料人工對位放料→排氣擠壓→長度方向?qū)φ?次→寬度方向折疊2次→擠壓式碼料→制品在集料槽中排列擠壓→人工取料。

　　*產品折疊位置可在觸摸屏上微調。

　　設備的主要配置：

　　1、觸摸屏操控，傻瓜式操作，界面簡潔，折疊位置可微調；

　　2、整機工業鋁型材架構，配備地腳及腳輪，移動便捷，生產穩重；

　　3.采用星辰氣動、臺灣永宏P(guān)LC、歐姆龍編碼器及威綸觸摸屏；

　　4.材料上機后配合滾輪排氣擠壓，壓縮產品厚度；

　　5、折板接觸面采用304不銹鋼材料制作；

　　6、彈壓式集料槽，成品擠壓定型；

　　7、全程可視化操作，可另配飛標計數裝置；

　　8、配工具一套.

　　Manual counter feeding of raw materials----Exhaust extrusion--Fold the length twice---Fold the width twice--Extruded feeding----The products are arranged and extruded in the aggregate tank--Artificial take the products

The folding position of the product can be fine-tuned on the touch screen

Touch screen control, fool-operation, simple interface, folding position can be fine-tuned;

　　Complete machine industrial aluminum structure, equipped with foot and casters, easy to move, stable production

Adopt star pneumatic, Taiwan Yonghong PLC, Omron encoder and Wylan touch screen

　　Material on the machine with the roller exhaust extrusion, compression product thickness

　　The contact surface of the folding plate is made of 304 stainless steel

Spring - pressure aggregate groove, finished product extrusion finalize

The whole visual operation can be equipped with another flying standard counting device

　　A set of tools attached
